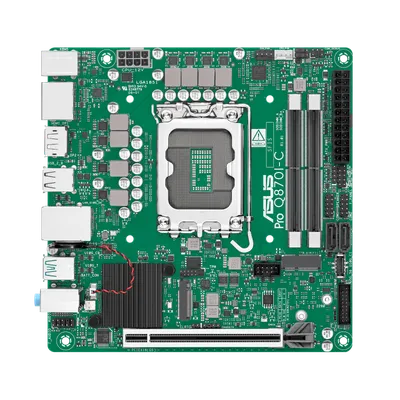

Pro Q870I-C-CSM

Sockel

LGA 1851

Chipset

Intel Q870

M.2-platser

1

Ethernet

1 Gigabit

Max minne

128 GB

PCIe-platser

1x PCIe 5.0 x16

SATA-portar

2

Ljudkodek

Realtek

Dimensioner

170 170 mm

Formfaktor

Mini-ITX

Minnestyp

DDR5

Displayutgångar

DisplayPort x2, HDMI x1

Max minneshastighet

6400 MHz

Övriga specifikationer

USB

Rear USB (Total 6 ports) 1 x USB 10Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports

BIOS

256 Mb Flash ROM

Accessories

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x Screw package for M.2 SSD 1 x I/O Shield 1 x M.2 Key E screw package Documentation 1 x ACC Express Activation Key Card 1 x Quick start guide

Manageability

WOL by PME, PXE

News & Updates

Please see the updated OS support requirements for the Intel Core Ultra 200S series below: •Intel Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later). •Intel Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility., Please visit our GLOBAL website to check and download the latest updates.

Operating System

Windows 11, Windows 10 64-bit

Special Features

ASUS Q-Design - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS EZ DIY - Box headers - Dual DIMM clips - SafeSlot Bespoke Motherboard Design & Business Focused Features - ASUS Boot Defender - ASUS Self Recovering BIOS* - ASUS BIOS EZ Deploy* - ASUS Event Log - ASUS MyHotkey - ASUS Commercial BIOS Kit** - Anti-moisture coating - 24/7 Reliability - Overcurrent Protection - Intel Trusted Execution Technology (Intel TXT) support *After updating BIOS, the system automatically enters S5 and needs to be restarted. **Please contact local FAE for Commercial BIOS kit. TPM IC onboard

Software Features

ASUS Exclusive Software ASUS DriverHub UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS MyHotkey

Back Panel I/O Ports

1 x USB 10Gbps port (1 x USB Type-C) 3 x USB 10Gbps ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 2 x DisplayPort 1 x HDMI port 1 x PS/2 keyboard (purple) port 1 x PS/2 mouse (green) port 1 x Intel 1Gb Ethernet 3 x Audio jacks

Internal I/O Connectors

Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector Storage Related 1 x M.2 slot (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Chassis Intrude header 2 x COM Port headers 1 x Front Panel Audio header (AAFP) 1 x COM debug header 1 x DIS ME CPU 1 x DIS ME PCH 1 x Mono-Out Audio header (with Amp IC) 1 x M.2 slot (Key E) 1 x Speaker header 1 x 10-1 pin Front Panel System header

Remote Management Features

IT Management software supported - ASUS Control Center Express(ACCE) Intel Q870 Chipset Intel vPro
