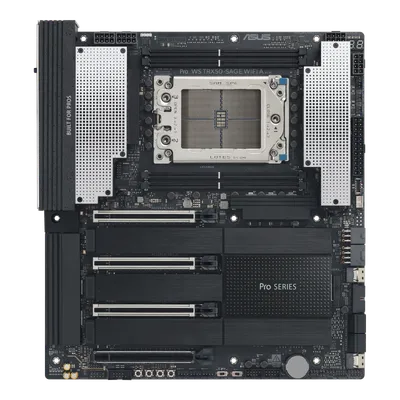

Pro WS TRX50-SAGE WIFI A

WiFi

WiFi 7

Sockel

sTR5

Chipset

AMD TRX50

M.2-platser

4

Ethernet

10 Gigabit

PCIe-platser

3x PCIe 5.0 x16, 1x PCIe 4.0 x16

SATA-portar

4

Ljudkodek

Realtek ALC1220P

Dimensioner

305 280 mm

Formfaktor

CEB

Minnestyp

DDR5

Minnesplatser

4

Övriga specifikationer

USB

Rear USB (Total 9 ports) 2 x USB4 (40Gbps) (2 x USB Type-C) 6 x USB 10Gbps ports (6 x Type-A) 1 x USB 2.0 ports (1 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD)* 1 x USB 5Gbps header supports 2 additional USB 5G ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports * USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Accessories

Cables 2 x SATA 6Gb/s cables 1 x Thermistor cable pack 1 x DisplayPort cable 1 x 4pin to 24-pin ATX power connector Miscellaneous 1 x ASUS WiFi Q-Antenna 2 x M.2 Q-Latch package(2 in 1) 2 x M.2 Q-Slide package 2 x M.2 Rubber Packages 1 x Fan bracket 1 x Q-connector Documentation 1 x ACC Express Activation Key Card 1 x QSG

RAID Support

AMD RAIDXpert2 Technology PCIe RAID 0/1/5/10 SATA RAID 0/1/5/10

Manageability

WOL by PME, PXE (UEFI mode)

News & Updates

Please visit our GLOBAL website to check and download the latest updates.

Operating System

Windows 11

Special Features

ASUS Q-Design - Q-Code - M.2 Q-Latch - M.2 Q-Release - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink and onboard thermal pads - M.2 heatsink backplate - VRM heatsink design with active fans ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - Dual DIMM clips - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable RGB Gen 2 header Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability - Overcurrent Protection

Software Features

ASUS Exclusive Software Armoury Crate - Fan Xpert 4 - Aura Sync ASUS CPU-Z ASUS DriverHub IT Management software supported - ASUS Control Center Express(ACCE) Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUSTeK. EzFlash Utility FlexKey * For more software features, please visit the asus support site or refer to www.asus.com/support for additional information. ** For detailed information on the supported models and restricted regions for this redemption offer, please refer to https://www.asus.com/content/asus-offers-adobe-creative-cloud/.

Back Panel I/O Ports

2 x USB4 (40Gbps) ports (2 x USB Type-C) 6 x USB 10Gbps ports (6 x Type-A) 1 x USB 2.0 port (1 x Type-A) 2 x DisplayPort IN 1 x Wi-Fi Module 1 x Marvell AQtion 10Gb Ethernet port 1 x Intel 2.5Gb Ethernet port 2 x Audio jacks 1 x BIOS FlashBack button 1 x Clear CMOS button

Internal I/O Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x W_PUMP+ header 4 x 4-pin Chassis Fan headers 2 x 4-pin VRM Fan header (with VRM FAN onboard) Power related 1 x 24-pin Main Power connectors 1 x 4-pin to 24-pin Main Power connectors 2 x 8-pin +12V CPU Power connector 2 x 8-pin PCIe to CPU power connectors 1 x 6-pin PCIe Power connector 1 x 8-pin PCIe Power connector Storage relate d 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 2 x SlimSAS port USB 1 x USB 20Gbps connector supports USB Type-C 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Addressable RGB Gen 2 header 1 x BMC header 1 x COM Port header 1 x FlexKey button 1 x Front panel audio header (F_AUDIO) 1 x Start button 1 x Safe boot button 1 x ReTry button 1 x LN2 mode jumper 1 x Slow mode switch 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front Panel System header 1 x Chassis intrusion header 1 x Thermal Sensor header 7 x ProbeIt Measurement Points

Remote Management Features

IT Management software supported - ASUS Control Center Express(ACCE) Ready for IPMI Expansion Card* 1 x BMC header * IPMI Expansion Card is sold separately.
