Sockel

sTR5

Chipset

AMD WRX90

M.2-platser

4

Ethernet

10 Gigabit

PCIe-platser

6x PCIe 5.0 x16, 1x PCIe 5.0 x16

SATA-portar

4

Ljudkodek

Realtek ALC1220P

Dimensioner

305 × 330mm

Formfaktor

EEB

Minnestyp

DDR5

Minnesplatser

8

Övriga specifikationer

EAN

4711387441145

ECC

Ja

LAN

Gigabit Ethernet

USB

Rear USB (Total 9 ports) 2 x USB 40Gbps (USB4) with ASMedia ASM4242 controller ports (2 x USB Type-C) 6 x USB 10Gbps ports (6 x Type-A) 1 x USB 2.0 port (1 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbpsconnector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5G ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports

BIOS

256 Mb Flash ROM, UEFI AMI BIOS(text-based)

Wi-Fi

Nej

Art.nr

20495892

Modell

PRO WS WRX90E-SAGE SE

Teknik

DDR5

Chipset

AMD WRX90

Lagring

Serial ATA-600 (RAID), SlimSAS slot, M.2-uttag

Kretstyp

AMD WRX90

Nätverk

Gigabit Ethernet

imageUrl

https://www.proshop.se/Images/600x800/3232004_5a6f583684df.png

Antal M.2

4 st

Ljudchipp

Realtek ALC1220P

Modell-nr

90MB1FW0-M0EAY0

Processor

AST2600

RAM-stöd

8 DIMM-kortplatser - DDR5, ECC, registrerad

Egenskaper

Fyrdubbel kanalminnesarkitektur

Produkttyp

Moderkort

RAID-stöd

Ja

Accessories

Cables 2 x PCIe 8-pin to CPU power cables 1 x 24-pin power cable (Y cable) 2 x Mini DisplayPort cables 4 x SATA 6Gb/s cables 1 x Thermistor cable pack Miscellaneous 1 x Q-connector 1 x M.2 Q-Latch package 1 x AMI license sticker 4 x M.2 rubber packages 1 x Screw package for M.2 Key E Documentation 1 x ACC Express Activation Key Card 1 x Quick start guide

Audio Codec

Realtek ALC1220P

Kategorivag

Datorkomponenter > Moderkort > AMD Socket sTR5

Lagerstatus

i lager

Leveranstid

Leveranstid 1-3 vardagar

Saljpunkt 1

AMD sTR5 EEB-moderkort

Saljpunkt 2

AMD WRX90-chipset

Saljpunkt 3

8 x DDR5-minnesplatser, max. 2 TB

Saljpunkt 4

7 x PCIe 5.0, 4 x M.2, 2 x Ethernet

Saljpunkt 5

För Ryzen Threadripper PRO-processorer

Tillverkare

ASUS

Produktlinje

ASUS

Produktlänk

https://www.asus.com/se/motherboards-components/motherboards/workstation/pro-ws-wrx90e-sage-se/

RAID-nivåer

0, 1, 5, 10

USB/FireWire

USB-C 3.2 Gen 2x2, USB 3.2 Gen 1, USB4

deliveryTime

2-12 vardagar

feedCategory

Moderkort

feedProvider

Partner-ads

Manageability

WOL by PME, PXE (UEFI mode)

Minneskanaler

Åtta kanaler

Lagringsportar

4 x SATA-600 (RAID), 4 x M.2, 2 x SlimSAS

Typ av produkt

Moderkort - SSI EEB

BIOS-egenskaper

UEFI BIOS

Internminnestyp

DDR5, DDR5 RDIMM

Processornummer

AST2600

Processorsockel

Socket sTR5

RAM-kortplatser

8 DIMM-kortplatser

Dustin artikelnr

5020023826

Operating System

Windows 11 Windows 10 64-bit

Produktens färg

Gjuten aluminium, Svart

Special Features

ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with SPS) - ESD Guards - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - Q-Release Slim (with PCIe SafeSlot) - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate and onboard thermal pads - M.2 heatsink - Steel backplate - VRM heatsink design with active fans ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability - Overcurrent Protection BMC Related 1 x BMC switch 1 x BMC LAN fixed IP switch 1 x IPMI switch 1 x Message LED header 1 x microSD card socket 2 x LAN LED headers 1 x Location LED header 1 x Location button header 1 x PSU_SMB header 1 x SMART_PSU switch 1 x VGA switch 1 x VGA header (Dedicated Management for AST2600) 1 x VPP_I2C header

Ombord grafikkort

Nej

Software Features

ASUS Exclusive Software Armoury Crate - Fan Xpert 4 ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 for Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUSTeK. EzFlash Utility FlexKey IT Management software supported - ASUS Control Center Express(ACCE)

Datalänkprotokoll

Gigabit Ethernet, Ethernet, Fast Ethernet

Produktbeskrivning

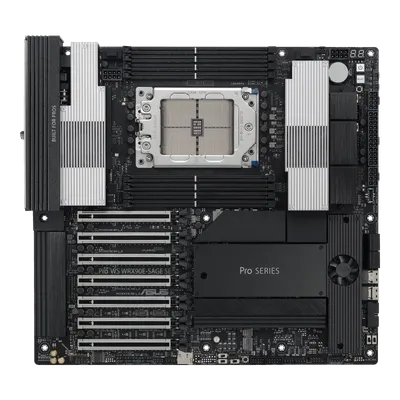

ASUS PRO WS WRX90E-SAGE SE - moderkort - SSI EEB AST2600 - Socket sTR5 - AMD WRX90

USB 2.0 anslutning

2

Antal minnesplatser

8

Leverantorsreferens

940972

Trådlöst nätverk

Nej

USB/FireWire-portar

2 x USB4 + 6 x USB 3.2 Gen 2 + 1 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 2 + 2 x USB 2.0 via headers)

Back Panel I/O Ports

2 x USB 40Gbps (USB4) with ASMedia ASM4242 controller ports (2 x USB Type-C) 6 x USB 10Gbps ports (6 x Type-A) 1 x USB 2.0 port (2 x Type-A) 1 x VGA port 2 x mini DisplayPort IN 1 x Intel dual 10Gb Ethernet ports 1 x Realtek 1Gb Ethernet port 2 x Audio jacks 1 x BIOS FlashBack button 1 x Clear CMOS button

Moderkort formfaktor

EEB

Moderkortets chipset

AMD WRX90

Nätverksgränssnitt

Gigabit Ethernet

Processortillverkare

AMD

Antal M.2 (M)-platser

4

RAM-teknik som stöds

DDR5 SDRAM

Standarder som följs

HD-ljud

Kompatibla processorer

(stöd för Ryzen Threadripper PRO 7000WX Series/ 7000 Series)

Minnestyper som stöds

DDR5-SDRAM

Programvara inkluderad

Norton 360 Deluxe (60 dagars provperiod), ASUS Fan Xpert 4, Armoury Crate, ASUS CPU-Z, Adobe Creative Cloud (kostnadsfri provperiod), ASUS Control Center Express, WinRAR (40 days trial)

Internal I/O Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x W_PUMP+ header 5 x 4-pin Chassis Fan headers 2 x 4-pin VRM Fan header (with VRM FAN onboard) 1 x 4-pin M.2 Fan header (with M.2 FAN onboard) Power related 1 x 24-pin Main Power connectors 2 x 8-pin +12V Power connectors 2 x 8-pin PCIe to CPU power connectors 2 x 8-pin PCIe Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 2 x SlimSAS port USB 1 x USB 20Gbps connector supports USB Type-C 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Chassis intrusion header 1 x COM port header 1 x FlexKey button 1 x Front panel audio header (F_AUDIO) 1 x LN2 mode jumper 1 x M.2 slot (Key E) 7 x ProbeIt measurement points 1 x ReTry button 1 x RSVD switch 1 x Slow mode switch 1 x Safe boot button 1 x SPI TPM header (14-1 pin) 1 x Start button 1 x 10-1 pin system panel header 1 x Thermal sensor header

Antal SATA III kontakter

4

Antal VGA (D-Sub) portar

1

Antalet COM-anslutningar

1

Medföljande programvara

Armoury Crate, ASUS Fan Xpert 4, ASUS CPU-Z, Adobe Creative Cloud (kostnadsfri provperiod), Norton 360 Deluxe (60 dagars provperiod), WinRAR (40 days trial), ASUS Control Center Express

Moderkort, chipsetfamilj

AMD

Registrerad eller buffrad

Registrerad

ATX strömkontakt (24-pin)

Ja

Antal USB 2.0 anslutningar

1

Maximalt antal processorer

1

Stöder Ram Integrity Check

ECC

Tillverkarens artikelnummer

90MB1FW0-M0EAY0

Typ av ethernet-gränssnitt

10 Gigabit Ethernet, Snabb Ethernet, Gigabit Ethernet

Ljudanslutning på framsidan

Ja

USB 3.2 Gen 2x2-anslutningar

1

Antal LAN (RJ-45) anslutningar

2

Antalet hårddiskar som stöds

4

Kompatibla processorkommentarer

Stöd för Ryzen Threadripper PRO 7000WX Series/ 7000 Series

Producentens garanti (månader)

36

Antal anslutningar för fläktar

5

Antal lagringsenheter som stöds

10

PCI Express x16 (Gen 5.x) platser

7

Lagringsenhetsgränssnitt som stöds

M.2, SATA III, SlimSAS

USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar

1

USB/FireWire-portkonfiguration (aktiv)

2 x USB4 + 6 x USB 3.2 Gen 2 + 1 x USB 2.0

USB/FireWire-portkonfiguration (sidhuvud)

1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 2 + 2 x USB 2.0

RAM som stöds (registrerad eller buffrad)

Registrerad

Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar

6
