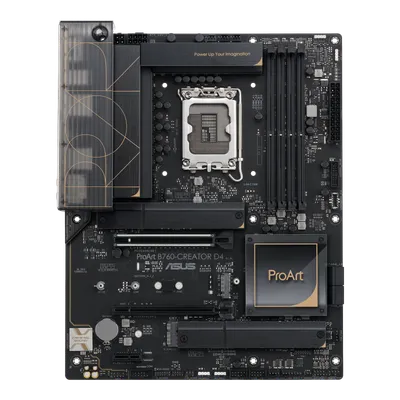

ProArt B760-CREATOR D4

Sockel

LGA 1700

Chipset

Intel B760

M.2-platser

3

Ethernet

2.5 Gigabit

Max minne

128 GB

PCIe-platser

1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x1

SATA-portar

4

Ljudkodek

Realtek

Dimensioner

305 244 mm

Formfaktor

ATX

Minnestyp

DDR4

Minnesplatser

4

Displayutgångar

HDMI x1, DisplayPort x1

Övriga specifikationer

EAN

4711387017852

LAN

Gigabit Ethernet, 2.5 Gigabit Ethernet

SKU

90MB1DU0-M0EAY0

Typ

HD-ljud (8 kanaler)

USB

Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2 Type-C port 4 x USB 3.2 Gen 1 ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports

BIOS

128 Mb

Djup

24.4 cm

Ljud

HD-ljud (8 kanaler)

Bredd

30.5 cm

Art.nr

9588756

Socket

LGA1700

Teknik

DDR4

Chipset

B760

Kategori

Intel Socket 1700

Kretstyp

Intel B760

Artikelnr

90MB1DU0-M0EAY0

Modell-nr

90MB1DU0-M0EAY0

RAM-stöd

4 DIMM-kortplatser - DDR4, icke ECC, ej buffrad

Egenskaper

Minnesarkitektur med dubbel kanal, Intel Extreme Memory Profiles (XMP)

Formfaktor

ATX

Accessories

Cables 2 x SATA 6Gb/s cables Miscellaneous 2 x M.2 Rubber packages 1 x Screw package for M.2 Key E 1 x ProArt ruler 1 x Q-connector Documentation 1 x ACC Express Activation Key Card 1 x User guide

Gränssnitt

1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen 2 4 x USB 3.2 Gen 1 4 x USB 2.0 1 x LAN (Gigabit Ethernet) 1 x LAN (2.5Gigabit Ethernet) 1 x ljudingång - mini-jack 1 x mikrofon - mini-jack 1 x ljudutgång (center/subwoofer) - mini-jack 1 x ljudutgång (främre surround) - mini-jack 1 x ljudutgång (bakre) - mini-jack 1 x SPDIF-utgång

Kategorivag

Datorkomponenter > Moderkort > Moderkort

Manageability

WOL by PME, PXE

Lagringsportar

4 x SATA-600 (RAID), 3 x M.2

Typ av produkt

Moderkort - ATX

BIOS-egenskaper

UEFI BIOS, ASUS EZ Flash 3

Maximal storlek

128 GB

RAID-egenskaper

Intel Rapid Storage Technology

Strömkontakter

24-pin kontakt för huvudström, 8-pin ATX12V-kontakt, 4-pin ATX12V-kontakt

Max. RAM-storlek

128 GB

Operating System

Windows 11 64-bit, Windows 10 64-bit

Processor-socket

1 x LGA1700-uttag

Special Features

ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool - Pre-mounted I/O shield AURA Sync - AURA RGB header - Addressable Gen 2 headers

Software Features

ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility DIGI+ VRM Turbo app ASUS CPU-Z IT Management software supported - ASUS Control Center Express(ACCE) ProArt Creator Hub CreationFirst Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Produktbeskrivning

ASUS ProArt B760-CREATOR D4 - moderkort - ATX - LGA1700-uttag - B760

Hårdvaruegenskaper

ASUS OptiMem II, LANGuard, ASUS DIGI+ VRM, ASUS Aura Sync, ASUS Enhanced DRAM överspänningsskydd, ASUS EZ DIY, ASUS överspänningsskydd, ASUS ProCool, ASUS Q-Connector, ASUS Q-Design, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ESD Guards, M.2 Q-Latch, förmonterat I/O-skydd, Q-DIMM, Q-LED, Q-Slot, VRM-kylelementskonstruktion, CrashFree BIOS 3, Preboot eXecution Environment (PXE), raftdesign med 20+1 faser, 50 A strömsteg, Windows 11-kompatibel, ASUS Crystal Sound 3, Water Pump Header, DIY Friendly Design

Interna gränssnitt

4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C Gen 2x2 - header 1 x ljud - header 1 x SPI - header 1 x Thunderbolt - header 1 x seriell - header

Lagringsgränssnitt

SATA-600 -kontakter: 4 x 7 pin Seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -kontakter: 2 x M.2 PCIe 3.0 -kontakter: 1 x M.2

Medföljande kablar

2 x Seriell ATA-kabel

USB/FireWire-portar

1 x USB-C 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Viloläge/väckning

Wake on LAN (WOL), wake on PME

Back Panel I/O Ports

1 x USB 3.2 Gen 2 port (1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 1 x Intel 1Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port

Nätverksgränssnitt

Gigabit Ethernet, 2.5 Gigabit Ethernet

Expansionskortplatser

1 x CPU 4 x DIMM 288-stift 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4-läge) 1 x PCIe 3.0 x1 3 x M.2 socket (2242/2260/2280/22110 M.2 Key M-plats) 1 x M.2 socket (Key E)

Standarder som följs

HD-ljud

Inkluderade tillbehör

2 st. M.2-gummipaket, 1 x M.2 skruv, ASUS ProArt ruler, Q-Connector, ACC Express Activation Key Card

Kompatibla processorer

(stöder 12:e och 13:e generationens Intel Core / Pentium Gold / Celeron)

Internal I/O Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 x USB 3.2 Gen1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt header

Medföljande programvara

Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 4, ASUS AI Suite III, ASUS CPU-Z, ASUS Control Center Express, ASUS ProArt Creator Hub, CreationFirst, Norton 360 Deluxe (60 dagars provperiod), WinRAR

Registrerad eller buffrad

Ej buffrad

Maximalt antal processorer

1

Stöder Ram Integrity Check

Icke ECC
