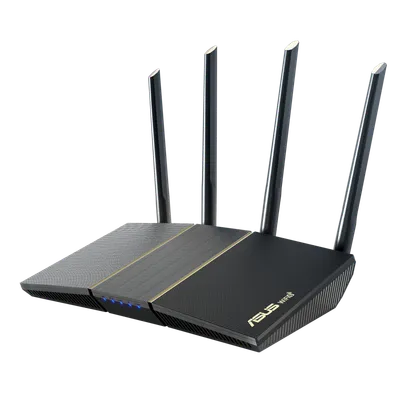

RT-AX57

WiFi

WiFi 6

5 GHz

Ja

6 GHz

Nej

Ethernet

1 Gbps

2,4 GHz

Ja

Mesh-stöd

AiMesh

Övriga specifikationer

LAN

Ja, Ja, Ja, Ja, Ja

VPN

Ja, Ja, Ja, Ja, Ja, Ja

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP, Nej, Ja, Ja, Ja

AiMesh

Ja, Ja, Ja

Memory

128 MB Flash / 256 MB RAM

Slogan

AX3000 Dual Band WiFi 6 (802.11ax) Router supporting MU-MIMO and OFDMA technology, with AiProtection Classic network security powered by Trend Micro

Antenna

External antenna x 4

Buttons

WPS Button, Reset Button, Power Switch

Security

Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, Ja, Ja, Ja, Ja

Wireless

Ja, Ja, Ja, Ja, Ja, Ja, Ja

I/O Ports

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4

Processor

1.7GHz quad-core processor

AiProtection

Ja, Ja

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access) / Beamforming: standard-based and universal / 1024-QAM high data rate / 20/40/80/160 MHz bandwidth

Power Supply

AC Input : 110V~240V(50~60Hz) / DC Output : 12 V with max. 1.5 A current

Guest Network

Ja

LED Indicator

Power x 1 / 2.4G x 1 / 5G x 1 / LAN x 1 / WAN x 1

Administration

Ja, Ja, Ja, Ja

Operating Mode

Access Point, AiMesh Node, Media Bridge, Repeater, Router

WiFi Data Rate

802.11ax (5 GHz) : upp till 2402 Mbit/s / 802.11ax (2,4 GHz) : upp till 574 Mbit/s / 802.11ac : upp till 1734 Mbit/s / 802.11n : upp till 300 Mbit/s / 802.11g : upp till 54 Mbit/s / 802.11b : upp till 11 Mbit/s / 802.11a : upp till 54 Mbit/s

Product Segment

AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps

Traffic Control

Ja, Ja, Ja, Ja, Ja, Ja

Network Standard

IP v 6 / IP v 4 / IEEE 802.11ax / IEEE 802.11ac / IEEE 802.11n / IEEE 802.11g / IEEE 802.11b / IEEE 802.11a

Parental Control

Ja, Ja

Product Dimensions

230 x 134 x 56 mm (WxDxH)

Product Weight (g)

374g

Transmit / Receive

5 GHz 2 x 2 / 2,4 GHz 2 x 2

Operating Frequency

2.4GHz / 5GHz
