Ljudnivå

16 dBA

Vikt

2.2 kg

Fläktstorlek

135 mm

Modulär

Full

Effekt

850 W

Fläkthastighet

2100 RPM

Garanti

10 years

ATX-version

ATX 3.1

Dimensioner

175 × 150 × 86mm

Effektivitet

80+ Titanium

Formfaktor

ATX

Lagertyp

FDB

Skydd

OTP, OCP, OPP, SCP, OVP, UVP, SIP

EPS-kontakter

2

SATA-kontakter

13

12VHPWR-kontakter

1

PCIe 8-pin-kontakter

4

Övriga specifikationer

CB

✓

CE

✓

CU

✓

CCC

-

ErP

✓

FCC

✓

Fan

Silent Wings

RCM

-

BSMI

-

IRAM

-

PATA

2

RoHS

✓

TÜV

✓

UKCA

✓

WEEE

✓

Color

Black

Model

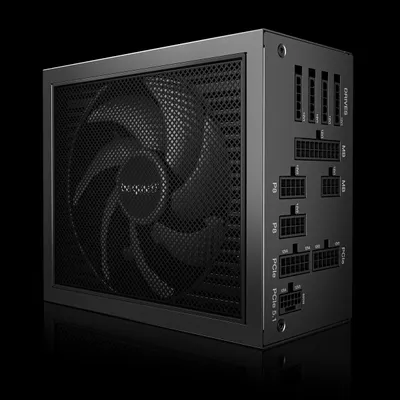

DARK POWER 14 | 850 W

cRUus

-

Screws

✓

Triman

✓

cTUVus

✓

+5V (A)

24

-12V (A)

0.5

EAN code

4260052192016

P4 (CPU)

-

Topology

Full bridge + LLC + SR + DC/DC

+12V1 (A)

30

+12V2 (A)

30

+12V3 (A)

35

+12V4 (A)

35

+12V5 (A)

N/A

+12V6 (A)

N/A

+3.3V (A)

24

+5Vsb (A)

3

RRP (€)

209.90

Cable ties

✓

Energy Star

9.0

Flat cables

✓

FDD (Floppy)

-

Thumb screws

-

No. of cables

10

Voltage (Vac)

100 - 240

Article number

BP019EU

Cybenetics ETA

1

Frequency (Hz)

50 - 60

Modern standby

✓

Peak power (W)

950

Sleeved cables

✓

Motor technology

6-pole fan motor

Overclocking key

✓

Cybenetics LAMBDA

A+

Input current (A)

10 / 5

PCI-e 6-pin (GPU)

-

Velcro cable ties

-

dB(A) at 10% load

7.7

dB(A) at 20% load

7.7

dB(A) at 50% load

7.9

dB(A) at 100% load

16

Form factor EPS 12V

Version 2.92

Digitally controlled

✓

User manual languages

CN, DE, EN, ES, FR, IT, JP, PL, RU, TW, UA

Power good signal (ms)

100 - 150

12V single rail operation

-

Maximum cable length (cm)

105

Pieces per packaging unit

4

Power factor at 100% load

>0.98

ATX-Motherboard (20+4-pin)

1

Gross weight, package (kg)

4.51

SFX-to-ATX adapter bracket

-

Max. combined power 12V (W)

850

OPP (over power protection)

✓

Average life time (h / 25°C)

>100,000

Hold-up time at 80% load (ms)

20.7

OCP (over current protection)

✓

OVP (over Voltage protection)

✓

Hold-up time at 100% load (ms)

-

SCP (short circuit protection)

✓

UVP (under Voltage protection)

✓

Efficiency (%) at 230V, 2% load

71.4

Gross weight, shipping box (kg)

19.34

Max. combined power 12V-2x6 (W)

600

SIP (Surge & Inrush protection)

✓

Cable length to motherboard (cm)

60

Efficiency (%) at 230V, 10% load

91.5

Efficiency (%) at 230V, 20% load

94.4

Efficiency (%) at 230V, 50% load

95.6

Multi-rail operation (12V rails)

4

Power consumption in standby (W)

<0.15

Efficiency (%) at 230V, 100% load

93.8

Max. combined power 3.3V + 5V (W)

120

OTP (over temperature protection)

✓

Operating temperature up to (°C)

40

Dimensions, package (L x W x H), (mm)

355 x 230 x 126

International hotline / free of charge

✓ / DE, FR, US

Express replacement service in first year

DE, FR

OCK slot bracket with switch / OCK jumper

-

Dimensions, shipping box (L x W x H), (mm)

528 x 368 x 260
