Ljudnivå

23.2 dBA

Vikt

2.41 kg

Fläktstorlek

135 mm

Modulär

Full

Effekt

1300 W

Fläkthastighet

2400 RPM

Garanti

10 years

Dimensioner

200 × 150 × 86mm

Effektivitet

80+ Titanium

Formfaktor

Version 3.1

Lagertyp

FDB

Skydd

OTP, OCP, OPP, SCP, OVP, UVP, SIP

EPS-kontakter

2

SATA-kontakter

16

12VHPWR-kontakter

2

PCIe 8-pin-kontakter

6

Övriga specifikationer

CB

✓

CE

✓

CU

✓

CCC

✓

ErP

✓

FCC

✓

Fan

Silent Wings

RCM

✓

BSMI

✓

IRAM

-

PATA

5

RoHS

✓

TÜV

✓

UKCA

✓

WEEE

✓

Color

Black

Model

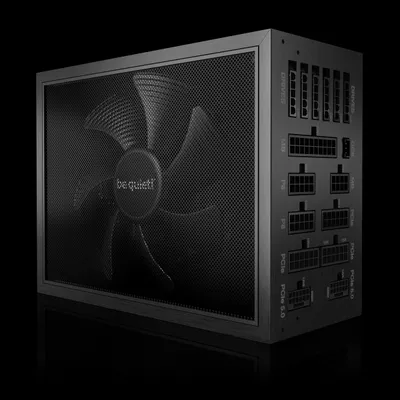

Dark Power Pro 13 1300W

cRUus

-

Screws

✓

Triman

✓

cTUVus

✓

+5V (A)

25

-12V (A)

0.5

EAN code

4260052189368

P4 (CPU)

-

Topology

Full bridge + LLC + SR + DC/DC

+12V1 (A)

35

+12V2 (A)

35

+12V3 (A)

40

+12V4 (A)

40

+12V5 (A)

55

+12V6 (A)

55

+3.3V (A)

25

+5Vsb (A)

3.5

RRP (€)

439.90

Cable ties

✓

Energy Star

8.0

Flat cables

-

FDD (Floppy)

-

Thumb screws

✓

No. of cables

16

Voltage (Vac)

115 - 240

Article number

BN331

Cybenetics ETA

-

Frequency (Hz)

50 - 60

Modern standby

✓

Peak power (W)

1400

Sleeved cables

✓

Motor technology

6-pole fan motor

Overclocking key

✓

Cybenetics LAMBDA

-

Input current (A)

15 / 9

PCI-e 6-pin (GPU)

-

Velcro cable ties

✓

dB(A) at 10% load

10.2

dB(A) at 20% load

10.2

dB(A) at 50% load

10.2

dB(A) at 100% load

23.2

Form factor EPS 12V

Version 2.92

Digitally controlled

✓

User manual languages

CN, DE, EN, ES, FR, JP, PL, RU, TW, KR

Power good signal (ms)

100-150

12V single rail operation

✓

Maximum cable length (cm)

105

Pieces per packaging unit

2

Power factor at 100% load

>0.99

ATX-Motherboard (20+4-pin)

1

Gross weight, package (kg)

6.8

SFX-to-ATX adapter bracket

-

Max. combined power 12V (W)

1300

OPP (over power protection)

✓

Average life time (h / 25°C)

>100,000

Hold-up time at 80% load (ms)

21.2

OCP (over current protection)

✓

OVP (over Voltage protection)

✓

Hold-up time at 100% load (ms)

18

SCP (short circuit protection)

✓

UVP (under Voltage protection)

✓

Efficiency (%) at 230V, 2% load

73.1

Gross weight, shipping box (kg)

14.4

Max. combined power 12V-2x6 (W)

800

SIP (Surge & Inrush protection)

✓

Cable length to motherboard (cm)

60

Efficiency (%) at 230V, 10% load

91.6

Efficiency (%) at 230V, 20% load

93.6

Efficiency (%) at 230V, 50% load

94.4

Multi-rail operation (12V rails)

6

Power consumption in standby (W)

<0.06

Efficiency (%) at 230V, 100% load

92.8

Max. combined power 3.3V + 5V (W)

150

OTP (over temperature protection)

✓

Operating temperature up to (°C)

50

Dimensions, package (L x W x H), (mm)

417 x 253 x 152

International hotline / free of charge

✓ / DE, FR, US

Express replacement service in first year

DE, FR

OCK slot bracket with switch / OCK jumper

✓

Dimensions, shipping box (L x W x H), (mm)

440 x 325 x 283
