Front I/O

2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 type C, 1x Audio Jack

Chassityp

Mid Tower

Material

Steel, Mesh, Plastic

Dimensioner

499 × 210 × 500mm (incl. Protrusions), 430 × 210 × 477mm (excl. Protrusions)

Formfaktor

EATX

Max 120 mm-fläktar

7

Max 140 mm-fläktar

4

2.5"-fack

3

3.5"-fack

2

Medföljande fläktar

Top: N/A; Front: 3x 120mm CF120 ARGB; Rear: N/A

Max GPU-längd

410 mm

Max PSU-längd

200 mm

Sidopanel

Tempered Glass

Expansionsplatser

7

Max kylarhöjd

165 mm

Radiatorstöd (topp)

120 / 140 / 240 / 280 / 360mm (recommended maximum thickness - 55mm)

Radiatorstöd (front)

120 / 140 / 240 / 280 / 360mm

Övriga specifikationer

Size

Mid Tower

Series

MasterBox Series

Summary

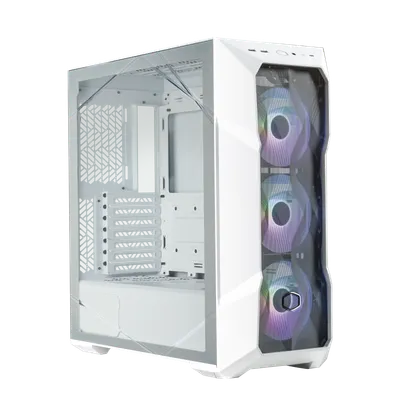

MasterBox TD500 Mesh V2's iconic polygonal design keeps your system looking unique and your gaming sessions streamlined.

Warranty

2 years

Category key

chassi

Dust Filters

Front, Top, Bottom

Model Number

TD500V2-WGNN-S00

Category path

global/catalog/pc-cases/mid-towers/

Exterior Color

Vit

Shopify handle

masterbox-td500-mesh-v2

Storyblok slug

masterbox-td500-mesh-v2

2.5" Drive Bays

3

3.5" Drive Bays

2

Clearance - GFX

410mm

Clearance - PSU

200mm (Recommended up to 170mm)

Expansion Slots

7

Fan Support - Top

3x 120mm, 2x 140mm

I/O Panel - Other

1x ARGB Fan Hub

Fan Support - Rear

1x 120mm

Fan Support - Front

3x 120mm, 2x 140mm

Motherboard Support

Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX* (*up to 12" x 10.7" motherboards, may impact cable management feature)

Materials - Exterior

Steel, Mesh, Plastic

Power Supply Support

Bottom Mount, ATX

I/O Panel - USB Ports

2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2 type C

Clearance - CPU Cooler

165mm

Dimensions (L x W x H)

499 x 210 x 500mm (incl. Protrusions), 430 x 210 x 477mm (excl. Protrusions)

Radiator Support - Top

120 / 140 / 240 / 280 / 360mm (recommended maximum thickness - 55mm)

Radiator Support - Rear

120mm

Pre-installed Fans - Top

N/A

Radiator Support - Front

120 / 140 / 240 / 280 / 360mm

Pre-installed Fans - Rear

N/A

I/O Panel - Audio In / Out

1x Audio Jack

Pre-installed Fans - Front

3x 120mm CF120 ARGB

Materials - Left Side Panel

Tempered Glass

Back Connector Motherboard Support

No

Cable Routing - Behind Motherboard Tray

19mm / 0.74"
