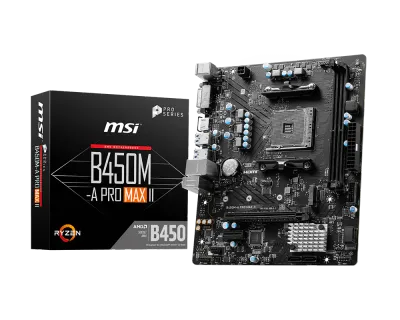

B450M-A PRO MAX II

Sockel

AM4

Chipset

AMD B450

M.2-platser

1

Ethernet

2.5 Gigabit

Max minne

64 GB

PCIe-platser

1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset)

SATA-portar

4

Ljudkodek

Realtek ALC897

Dimensioner

200 236 mm

Formfaktor

Micro ATX

Minnestyp

DDR4

Minnesplatser

2

Displayutgångar

1x HDMI Support HDMITM 2.0b with HDR port, maximum resolution of 4K 60Hz* 1x DVI Support DVI-D, maximum resolution of 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Övriga specifikationer

USB

2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front)

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Slots

1 x PCIe 3.0 x16 slot Supports x16 speed 1st, 2nd and 3rd Gen AMD Ryzen Supports x8 speed Ryzen with Radeon Vega Graphics 2nd Gen AMD Ryzen with Radeon Graphics A-series Athlon X4 Supports x4 speed AMD Athlon with Radeon Vega Graphics; Supports x16 speed 1st, 2nd and 3rd Gen AMD Ryzen; 1st, 2nd and 3rd Gen AMD Ryzen; Supports x8 speed Ryzen with Radeon Vega Graphics 2nd Gen AMD Ryzen with Radeon Graphics A-series Athlon X4; Ryzen with Radeon Vega Graphics; 2nd Gen AMD Ryzen with Radeon Graphics; A-series; Athlon X4; Supports x4 speed AMD Athlon with Radeon Vega Graphics; AMD Athlon with Radeon Vega Graphics; PCIe 2.0 x1 slot

Mounting

6 mounting holes

Processor

Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4 See supported processors

Dimensions

9.3 in. x 7.9 in. (23.6 cm x 20.0 cm); m-ATX Form Factor

Box content

MSI does not guarantee the risks or damages caused by changing the cover.; These pictures are for reference only and may vary without notice.

Internal IO

1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports
