1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 2; 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz1; x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz1 2; Available only on processors featuring integrated graphics.; Graphics specifications may vary depending on the CPU installed.
Övriga specifikationer
USB
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector); 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
VGA
1
HDMI
1
Socket
1700
DirectX
12
Jumpers
1x Clear CMOS jumper
SATAIII
4
M.2 Slot
1
PCI-E x1
1
PCI-E x16
1
Processor
Please go to www.msi.com to get the newest support status as new processors are released.
mATX Form Factor; 9.61 x 8.31 in. (24.4 cm x 21.1 cm)
SATA Ports
4x SATA 6Gb/s ports1; * SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

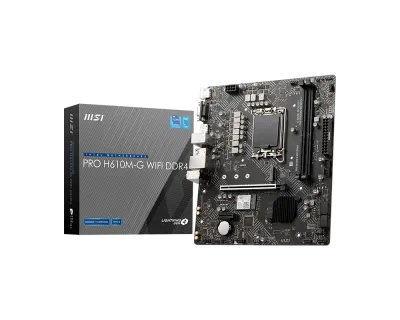

Box content
MSI does not guarantee the risks or damages caused by changing the cover.; These pictures are for reference only and may vary without notice.
CPU Support
Support for Windows 11 64-bit, Windows 10 64-bit
DisplayPort
1
Form Factor
M-ATX
LED Features
1x 4-pin RGB LED connector; 2x 3-pin RAINBOW LED connectors; 4x EZ Debug LED
M.2 SSD Slot
1x M.2 slot (Key M, from chipset)1 Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Smart Response Technology for Intel Core processors; Supports up to PCIe 3.0 x4; Supports up to SATA 6Gb/s; Supports 2242/ 2260/ 2280 storage devices; Supports Intel Smart Response Technology for Intel Core processors; SATA7 will be unavailable when installing M.2 SATA SSD in the M2_1 slot
TPM (header)
1
Expansion Slot
1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16; Supports up to PCIe 4.0 x16; 1x PCIe x1 slot Supports PCIe 3.0 x1; Supports PCIe 3.0 x1
Fan Connectors
1x 4-pin CPU fan connector; 1x 4-pin system fan connector
Memory Channel
Dual
Max Memory (GB)
64
Back panel ports
HDMI; VGA; DisplayPort; Keyboard/Mouse; USB 3.2 Gen 1 5Gbps Type-A; LAN port; Audio connector; USB 2.0
Operating System
Support for Windows 11 64-bit
Power Connectors
1x 24-pin ATX main power connector; 1x 8-pin ATX 12V power connector
WiFi & Bluetooth
Wi-Fi 5, Bluetooth 4.2
System Connectors
1x Front panel audio connector; 2x System panel connectors; 1x Chassis Intrusion connector; 1x TPM module connector; 1x Serial port connector
