Djup

575 mm

Bredd

280 mm

Höjd

615 mm

Volym

99 L

Vikt

19.52 kg

Front I/O

2x USB 3.0 1x USB-C 3.2 Gen2x2 1x Microphone, Headphone combo Power button Reset button D-RGB mode D-RGB color D-RGB speed

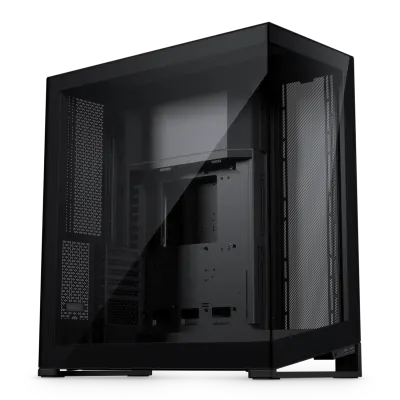

Chassityp

Full Tower

Material

Steel chassis, Aluminum panels, Tempered glass window, ABS plastic

Dimensioner

575 × 280 × 615 mm

Formfaktor

E-ATX, ATX, Micro-ATX, Mini-ITX

Max 120 mm-fläktar

12

Max 140 mm-fläktar

11

2.5"-fack

6

3.5"-fack

3

Max GPU-längd

490 mm

Max PSU-längd

210 mm

Sidopanel

Tempered Glass

Expansionsplatser

8

Max kylarhöjd

205 mm

Övriga specifikationer

Extra Screws

34x Mainboard | SSD screws 4x Power supply screws 9x HDD screws 4x thumbscrews 1x Mainboard stand-off 1x Stand-off removal tool 1x Extra right-side panel screw

General Color

Black

Extra Warranty

5 Years Limited | Learn more

General UPC Code

886523303480

General Model No.

PH-NV923TG_DBK02

Extra Gross Weight

23.00 kg | 50.70 lbs

Fans 120 | 140 Top

3 | 3

Extra Accessory Box

1x GPU support bracket 2x Airflow covers 6x Zip ties 1x D-RGB mainboard adapter 500 mm 1x Microfiber cloth

Fans 120 | 140 Rear

2 | 2

Fans 120 | 140 Side

4 | 3

Fans 120 | 140 Front

- | -

Fans 120 | 140 Bottom

3 | 3

Radiator 120 | 140 Top

Max. 360 | 420

Extra Scope of Delivery

1x NV9 MKII chassis 1x Storage bracket Pre-installed

Radiator 120 | 140 Rear

Max. 240 | 280

Radiator 120 | 140 Side

Max. 480 | 420

Radiator 120 | 140 Front

- | -

Radiator 120 | 140 Bottom

Max. 360 | 420

Clearance Top 360 Radiator

Length x Width | 515 x 154 mm | 20.27 x 6.06 in

Clearance Rear 240 Radiator

Length x Width | 325 x 154 mm | 12.79 x 6.06 in

Clearance Side 480 Radiator

Length x Width | 525 x 154 mm | 20.66 x 6.06 in

General Vertical GPU Support

Yes | Riser cable & bracket sold separately
